Integrating Esbonio with Neovim Using Nix¶
Try it yourself!
If I’ve done all my homework right, you should be able to try the result of this blog post for yourself Assuming you have nix installed
$ nix run github:alcarney/esbonio?rev=a077efeed176dcad2ae5e4fd221179d266f88ca1
should be the only command you need. Let me know if you run into any issues!
Defining Applications¶
One of the defined flake outputs is apps.<system>.<name>
which as the name suggests allows you to export applications from a flake.
{
description = "Esbonio";
inputs = {
nixpkgs.url = "github:NixOS/nixpkgs/nixpkgs-unstable";
utils.url = "github:numtide/flake-utils";
};
outputs = { self, nixpkgs, utils }:
utils.lib.eachDefaultSystem (system:
let
pkgs = import nixpkgs { inherit system; };
in {
apps.default = { type = "app"; program = "${pkgs.neovim}/bin/nvim"; };
}
);
}
This simple flake.nix
exports neovim as an application which we can launch by running nix run .
from the folder containing this flake.

Which works as expected however, it’s also picking up my personal config - not so useful when you’re trying to create a standard, isolated environment.
Isolated Configuration¶
As with most things in Nix, the neovim package definition allows for certain fields to be overridden - including the config.
Let’s start by trying provide an empty init.vim
file.
utils.lib.eachDefaultSystem (system:
let
pkgs = import nixpkgs { inherit system; };
neovim = pkgs.neovim.override {
configure = {
customRC = ''
'';
};
};
in {
apps.default = {
type = "app";
program = "${neovim}/bin/nvim";
};
}
);
And try nix run .
again

Which worked! Sort of… well… not really. 😕
It worked in the sense that it loaded the empty init.vim
file we specified (notice that the screenshot above has no line numbers).
However, it’s not truly isolated since it went ahead and loaded my plugins anyway due to my user’s home folder being included in the runtimepath
Tip
To get the contents of your runtimepath into a buffer.
In
INSERT
mode type<c-r>=&rtp
and hit enterReplace all commas with newlines
:%s/,/\r/g
So how can we exclude them?
nvim --clean
¶
Reading through :h ‘runtimepath’ there’s a lot of detail around which paths are searched by default and in what order. But right at the end there’s a little note
With
--clean
the home directory entries are not included.
Which sounds like just what we need!
The question is… how do we start nvim
with that flag?
Looking around the nixpkgs repo for a bit I found a set of
test cases
that made use of a
utility
for generating a config, along with a
wrapper
which converts the given config into a shell script.
This shell script pulls together various components from /nix/store
, before ultimately launching our isolated instance of neovim.
Example wrapper script
Here is an example of a wrapper script generated by nix.
#! /nix/store/0hx32wk55ml88jrb1qxwg5c5yazfm6gf-bash-5.2-p15/bin/bash -e
export NVIM_SYSTEM_RPLUGIN_MANIFEST='/nix/store/jjl5fy7dc5cxvc7mi781vxbk8ag89ih0-neovim-0.8.3-esbonio/rplugin.vim'
export GEM_HOME='/nix/store/4mmkiw8n1nhlfsnh4g2kijzkxnp6fyxb-neovim-ruby-env/lib/ruby/gems/2.7.0'
PATH=${PATH:+':'$PATH':'}
if [[ $PATH != *':''/nix/store/4mmkiw8n1nhlfsnh4g2kijzkxnp6fyxb-neovim-ruby-env/bin'':'* ]]; then
PATH=$PATH'/nix/store/4mmkiw8n1nhlfsnh4g2kijzkxnp6fyxb-neovim-ruby-env/bin'
fi
PATH=${PATH#':'}
PATH=${PATH%':'}
export PATH
LUA_PATH=${LUA_PATH:+';'$LUA_PATH';'}
LUA_PATH=${LUA_PATH/';''/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/share/lua/5.1/?/init.lua'';'/';'}
LUA_PATH='/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/share/lua/5.1/?/init.lua'$LUA_PATH
LUA_PATH=${LUA_PATH#';'}
LUA_PATH=${LUA_PATH%';'}
export LUA_PATH
LUA_PATH=${LUA_PATH:+';'$LUA_PATH';'}
LUA_PATH=${LUA_PATH/';''/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/share/lua/5.1/?.lua'';'/';'}
LUA_PATH='/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/share/lua/5.1/?.lua'$LUA_PATH
LUA_PATH=${LUA_PATH#';'}
LUA_PATH=${LUA_PATH%';'}
export LUA_PATH
LUA_CPATH=${LUA_CPATH:+';'$LUA_CPATH';'}
LUA_CPATH=${LUA_CPATH/';''/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/lib/lua/5.1/?.so'';'/';'}
LUA_CPATH='/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/lib/lua/5.1/?.so'$LUA_CPATH
LUA_CPATH=${LUA_CPATH#';'}
LUA_CPATH=${LUA_CPATH%';'}
export LUA_CPATH
exec -a "$0" "/nix/store/1czj8mydgi30kyfimq6q4ifh06q131ch-neovim-unwrapped-0.8.3/bin/nvim" -u /nix/store/fqjv4r08pl8k3vhy6ijxddrn8gpq2h7z-init.vim '--cmd' 'let g:loaded_node_provider=0 | let g:loaded_python_provider=0 | let g:python3_host_prog='\''/nix/store/jjl5fy7dc5cxvc7mi781vxbk8ag89ih0-neovim-0.8.3-esbonio/bin/nvim-python3'\'' | let g:ruby_host_prog='\''/nix/store/jjl5fy7dc5cxvc7mi781vxbk8ag89ih0-neovim-0.8.3-esbonio/bin/nvim-ruby'\''' "$@"
After some trial and error I was able to put together the following
utils.lib.eachDefaultSystem (system:
let
pkgs = import nixpkgs { inherit system; };
nvim-cfg = pkgs.neovimUtils.makeNeovimConfig {
extraName = "-esbonio";
customRC = ''
set number
'';
};
neovim-config = pkgs.lib.attrsets.updateManyAttrsByPath [
{
path = ["wrapperArgs"];
update = old: old ++ [
"--add-flags" "--clean"
];
}
] nvim-cfg;
neovim = pkgs.wrapNeovimUnstable pkgs.neovim-unwrapped neovim-config;
in {
apps.default = {
type = "app";
program = "${neovim}/bin/nvim";
};
}
);
To summarize
pkgs.neovimUtils.makeNeovimConfig
as the name suggests is a utility that generates a neovim “config”. “config” in this case is an attribute set containing all the arguments required to callpkgs.wrapNeovimUnstable
.One of these arguments is called
wrapperArgs
which contains the list of cli arguments to pass to the wrapped instance of neovim. Well almost.wrapperArgs
aren’t passed through to neovim directly, they are passed to a utility calledmakeWrapper
which is a small program with it’s own set of arguments that allow you to describe how you want to wrap an underlying executable. This is why I’m appending"--add-flags" "--clean"
towrapperArgs
and not just--clean
.Finally, the config and base neovim derivation are passed to
pkgs.wrapNeovimUnstable
to bring it all together.
Unfortunately, after all that I still didn’t end up with the result I was looking for

No plugins, but also note no line numbers 😢¶
Not only does the --clean
flag prevent neovim from loading the plugins in my home folder, it also stopped neovim from loading the contents of my customRC
- something I would’ve found out if I’d actually read the help text for --clean
itself
--clean
- Mimics a fresh install of Nvim:
Skips initializations from files and environment variables.
No ‘shada’ file is read or written.
Excludes user directories from ‘runtimepath’
Loads builtin plugins, unlike -u NONE -i NONE.
It should be possible to work around this though by telling neovim to source
our init file as well as giving it the --clean
flag.
Let’s take a look at the exec
command nix is currently generating for us in the wrapper script.
exec -a "$0" "/nix/store/1czj8mydgi30kyfimq6q4ifh06q131ch-neovim-unwrapped-0.8.3/bin/nvim" \
-u /nix/store/fqjv4r08pl8k3vhy6ijxddrn8gpq2h7z-init.vim \
--cmd '...' \
--clean \
"$@"
The -u /nix/store/fqj...-init.vim
argument contains the contents of our customRC
and I think changing the command to something like
exec -a "$0" "/nix/store/1czj8mydgi30kyfimq6q4ifh06q131ch-neovim-unwrapped-0.8.3/bin/nvim" \
--clean \
--cmd 'source /nix/store/fqjv4r08pl8k3vhy6ijxddrn8gpq2h7z-init.vim' \
"$@"
will result in the behaviour I’m looking for.
Tip
So far I’ve neglected to mention how I’m finding the /nix/store
path containing this wrapper script.
Using the nix repl you can load your flake and inspect the values it contains.
$ nix repl
Welcome to Nix 2.11.1. Type :? for help.
nix-repl> :lf . # load the flake located at '.'
warning: Git tree '/var/home/alex/Projects/esbonio-nix' is dirty
Added 9 variables.
nix-repl> outputs.apps.x86_64-linux.default
{ program = "/nix/store/knr1nfdmg9ld0xg813hb7ljl68060jlv-neovim-0.8.3-esbonio/bin/nvim"; type = "app"; }
It’s also useful for figuring out how the many utilities in nixpkgs work
nix-repl> pkgs = import inputs.nixpkgs {system = "x86_64-linux"; }
nix-repl> config = pkgs.neovimUtils.makeNeovimConfig { customRC = "set number"; }
nix-repl> config.wrapperArgs
[ "--inherit-argv0" "--add-flags" "'--cmd' 'let g:loaded_node_provider=0 | let g:loaded_python_provider=0 | let g:python3_host_prog='\\''/1rz4g4znpzjwh1xymhjpm42vipw92pr73vdgl6xs1hycac8kf2n9/bin/nvim-python3'\\'' | let g:ruby_host_prog='\\''/1rz4g4znpzjwh1xymhjpm42vipw92pr73vdgl6xs1hycac8kf2n9/bin/nvim-ruby'\\'''" "--set" "GEM_HOME" "/nix/store/4mmkiw8n1nhlfsnh4g2kijzkxnp6fyxb-neovim-ruby-env/lib/ruby/gems/2.7.0" "--suffix" "PATH" ":" "/nix/store/4mmkiw8n1nhlfsnh4g2kijzkxnp6fyxb-neovim-ruby-env/bin" "--prefix" "LUA_PATH" ";" "/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/share/lua/5.1/?.lua;/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/share/lua/5.1/?/init.lua" "--prefix" "LUA_CPATH" ";" "/nix/store/nlmk08cmald0zi7fc6hgpdqrjz7lh8qj-luajit-2.1.0-2022-10-04-env/lib/lua/5.1/?.so" ]
.
Unfortunately, I could not see an obvious way to rewrite the arguments to exec
.
The store path for the init.vim
file is only generated in the depths of the wrapNeovimUnstable
as it is written to disk and trying to manipulate wrapperArgs
to extract it isn’t something I’m willing to attempt in Nix just yet!
A New Approach¶
It was at this point I started looking around to see what other people have come up with and before long I found this reddit thread which linked this flake that looked very promising. Not only did it provide a way of creating an isolated config but it also showed how to manage plugins and external binaries!
Following its example I was able to come up with the following definition
utils.lib.eachDefaultSystem (system:
let
pkgs = import nixpkgs { inherit system ; };
initVim = ''
set number
'';
paths = pkgs.lib.makeBinPath [
pkgs.neovim
];
pluginList = with pkgs.vimPlugins; [
nvim-lspconfig
];
plugins = pkgs.stdenv.mkDerivation {
name = "esbonio-nvim-plugins";
buildCommand = ''
mkdir -p $out/nvim/site/pack/plugins/start/
${pkgs.lib.concatMapStringsSep "\n" (path: "ln -s ${path} $out/nvim/site/pack/plugins/start/") pluginList }
'';
};
neovim = pkgs.writeShellScriptBin "nvim" ''
export PATH=${paths}:$PATH
export XDG_CONFIG_DIRS=
export XDG_DATA_DIRS=${plugins.outPath}
nvim --clean --cmd source ${pkgs.writeText "init.vim" initVim} "$@"
'';
in {
apps.default = {
type = "app";
program = "${neovim}/bin/nvim";
};
}
);
And trying nix run .
once more

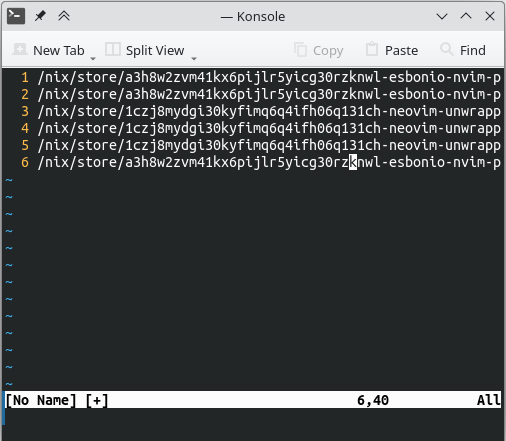

Success!¶
Not only did I end up with the correct configuration, the runtimepath
finally contains just the paths that are necessary!
Integrating Esboino¶
Next we need to make sure the esbonio language server is available in this environment and include the necessary configuration for it in the config.
Including the server should be pretty straightforward as we get to reuse the overlay defined previously.
inputs = {
nixpkgs.url = "github:NixOS/nixpkgs/nixpkgs-unstable";
+ esbonio.url = "path:lib/esbonio";
+ esbonio.inputs.nixpkgs.follows = "nixpkgs";
utils.url = "github:numtide/flake-utils";
};
- outputs = { self, nixpkgs, utils }:
+ outputs = { self, nixpkgs, esbonio, utils }:
utils.lib.eachDefaultSystem (system:
let
- pkgs = import nixpkgs { inherit system ; };
+ pkgs = import nixpkgs { inherit system ; overlays = [ esbonio.overlays.default ];};
initVim = ''
set number
'';
paths = pkgs.lib.makeBinPath [
pkgs.neovim
+ pkgs.python310Packages.esbonio
];
Should being the key word here…
$ nix run .
warning: Git tree '/var/home/alex/Projects/esbonio-nix' is dirty
warning: updating lock file '/var/home/alex/Projects/esbonio-nix/flake.lock':
• Added input 'esbonio':
'path:lib/esbonio?lastModified=1&narHash=sha256-WiFypw4lUZo7P9h82NMudwb5DFV0Nde5cOu1SqDmhVQ=' (1970-01-01)
• Added input 'esbonio/nixpkgs':
follows 'nixpkgs'
• Added input 'esbonio/pytest-lsp':
'github:swyddfa/lsp-devtools/6ae80a24b55d2b6943b9d30805cf02440ebbaf5c?dir=lib%2fpytest-lsp' (2023-04-02)
• Added input 'esbonio/pytest-lsp/nixpkgs':
follows 'esbonio/nixpkgs'
• Added input 'esbonio/pytest-lsp/utils':
'github:numtide/flake-utils/93a2b84fc4b70d9e089d029deacc3583435c2ed6' (2023-03-15)
• Added input 'esbonio/utils':
'github:numtide/flake-utils/5aed5285a952e0b949eb3ba02c12fa4fcfef535f' (2022-11-02)
warning: Git tree '/var/home/alex/Projects/esbonio-nix' is dirty
error: undefined variable 'pytest-lsp'
at /nix/store/96z740kkay7j0cbgmccj2mzbn5z8agvp-source/nix/esbonio-overlay.nix:22:11:
21| mock
22| pytest-lsp
| ^
23| pytest-timeout
(use '--show-trace' to show detailed location information)
The overlay exported by the language server’s flake doesn’t include its dependency pytest-lsp
which is provided through an overlay of its own.
A quick “fix” would be to also pull in the flake for pytest-lsp, but really the language server’s flake should be exporting all of its dependencies.
Composing Overlays¶
Thankfully, nixpkgs provides a function composeManyExtensions that handles this for us. When exporting the overlay from within the language server’s flake we can use it to merge the overlay from pytest-lsp with the overlay containing esbonio.
# In lib/esbonio/flake.nix
overlays.default = self: super: nixpkgs.lib.composeManyExtensions [
pytest-lsp-overlay
esbonio-overlay
] self super
However, since flake.lock
freezes the language server’s flake as it was before we made this change we need to also update the lock file before trying again
$ nix flake lock --update-input esbonio
warning: Git tree '/var/home/alex/Projects/esbonio-nix' is dirty
warning: updating lock file '/var/home/alex/Projects/esbonio-nix/flake.lock':
• Updated input 'esbonio':
'path:lib/esbonio?lastModified=1&narHash=sha256-WiFypw4lUZo7P9h82NMudwb5DFV0Nde5cOu1SqDmhVQ=' (1970-01-01)
→ 'path:lib/esbonio?lastModified=1&narHash=sha256-QgSDxOPSrtsaqjeStalef07+bUE3qkzz7pJC4y43ltw=' (1970-01-01)
warning: Git tree '/var/home/alex/Projects/esbonio-nix' is dirty
Now trying nix run .
again neovim launches as before, running the command :r !python -m esbonio --help
we can verify that the language server is indeed available to the editor.

Almost there!¶
Editor’s Note
Since writing this section and taking the above screenshot, I have been unable to re-produce it!
Now :r !python -m esbonio --help
results in a esbonio: Module not found
error…
When debugging this, I’m not sure how the original ever worked since the flake definition does not include
a Python interpreter meaning that python -m esbonio --help
is running under the system Python.
The fix then, was to switch from python -m esbonio --help
to calling esbonio --help
directly, which thankfully, did not require me to change any of the Nix code.
Configuring Neovim¶
Now all that’s left to do is updating our initVim
variable to contain the relevant configuration for the language server.
Thanks to the
example configuration
available in the documentation, this can be as straightforward as replacing our hardcoded configuration with a call to Nix (the language’s) builtin
readFile
function.
utils.lib.eachDefaultSystem (system:
let
pkgs = import nixpkgs { inherit system ; overlays = [ esbonio.overlays.default ];};
- initVim = ''
- set number
- '';
+ initVim = builtins.readFile ./docs/lsp/editors/nvim-lspconfig/init.vim;
paths = pkgs.lib.makeBinPath [
pkgs.neovim
pkgs.python310Packages.esbonio
];
And try opening a Sphinx project with it

It’s not pretty, but it works!¶
Wrapping Up¶
The experience as is currently stands is not that inspiring however, with the nix foundations laid it’s now more of a configuring neovim problem rather than a nix one! I am mildly disappointed that this required to dive so deep on the specifics of how neovim is configured, since that probably means you’d have to go to a similar depth to incorporate other editors. That said, once you’ve solved it for a given editor it’s probably solved “forever”.
Next I think I’d be interested in exploring how (or if it’s even possible) to make these Nix definitions more dynamic e.g.
Using the language server from
$EDITOR
using Python3.x
Run the language server tests, but with a local checkout of pygls
Edit docs for
$PROJECT
using SphinxvX
Obviously, you could achieve a lot of that by just editing the Nix definitions and rebuilding but I wonder if it’s possible to build in support for swapping parts out that can be wrapped up in a Makefile or similar 🤔
